NEW 2024 YORK 80 ton, 90 ton, Air Cooled Chiller 460V YLAA-0089SJ46VSD Avail. 9/24/24

·        Stock can change daily please check with us on availability!

·        KIG, (Keith Industrial Group Inc.) specializes in NEW Air Cooled Chillers for industries such as breweries, wineries, manufacturing, plating, plastics, comfort cooling. We provide hundreds of units per year from 20 ton up to 350 ton. This YORK YLAA-0089SJ46 VSD "81 ton" chiller is currently being made for stock and:

·        Next available due into stock 9/24/24

·        Note: this is the newest R454b refrigerant accepted in ALL states

·        A start up visit charge must be added to the total and is required to honor 1 year parts and labor warranty. Cost ranges from $ 2,300 up to $ 4,100 depending on the address and zip code of the site location. PLEASE CHECK WITH US.

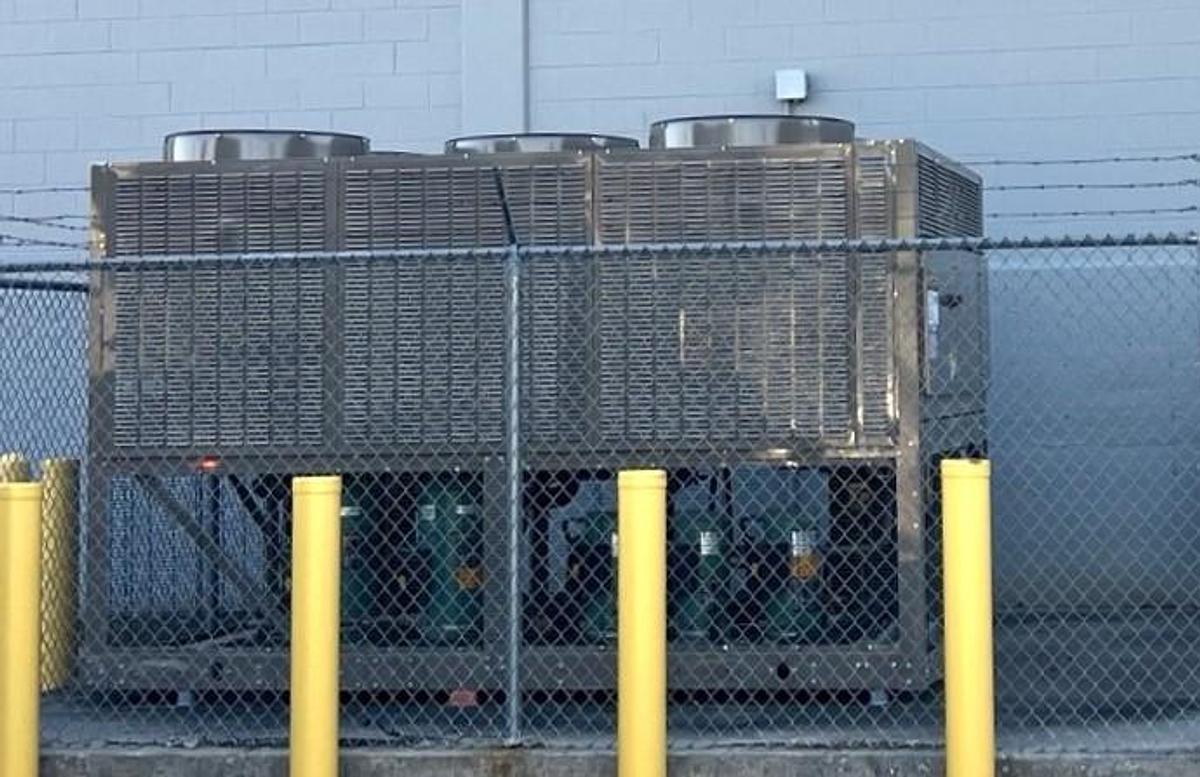

·        York / Johnson Controls, YLAA-0089SJ46VSD series air cooled chiller

·        ~ 81 tons of cooling at 44F water / 95F ambient conditions

·        Variable Speed Drive on ALL fans

·        Plate evaporator. Microchannel Coils.

·        R-454b Refrigerant (Fully Charged) (71 Lbs)

·        2 refrigerant circuits

·        VoltageCode - (460/3/60)

·        MCA: 188 amps / Max fuse: 200

·        6 Scroll Compressors (2 for each circuit)

·        Water through evap: Min. 100 gpm, max 400 gpm. Design flow rate 192 gpm

·        3" inlet and outlet connections (grooved victaulic)

·        SP NF Disconnect Switch w/Lockable Handle

·        Control Transformer

·        Both Low/High Ambient Kit (for outdoor winter use / or high temp summer use) - both ok

·        Hot Gas Bypass on circuit #1

·        Integrated flow switch and Y strainer

·        No water pump or reservoir tank internal

·        89" wide x 116" long x 95" tall

·        Shipping Weight: 4537 /  Operating Weight 4610  lbs

·        Keith Industrial Group, Inc. (KIG) Clinton MA / San Antonio TX

8/19/24
