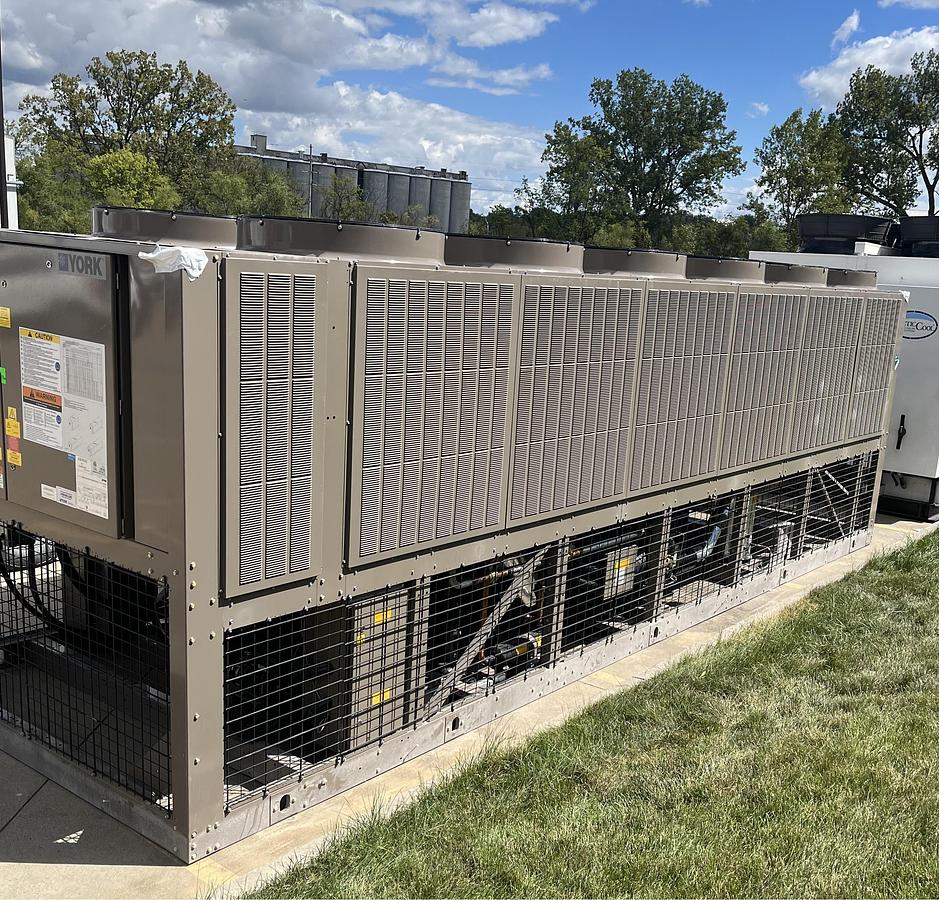

IN STOCK! 2024 YORK 230 ton Air Cooled Screw Chiller YVAA-0233XXX46R r513a

IN STOCK! 2024 YORK 230 ton Air Cooled Screw Chiller YVAA-0233XXX46R r513a

$198,100 (USD)

orCall 978-514-3800

Description

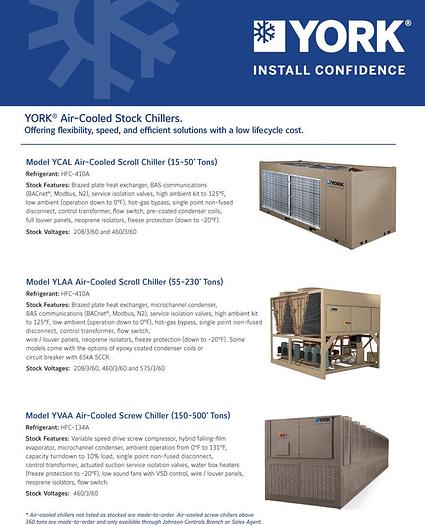

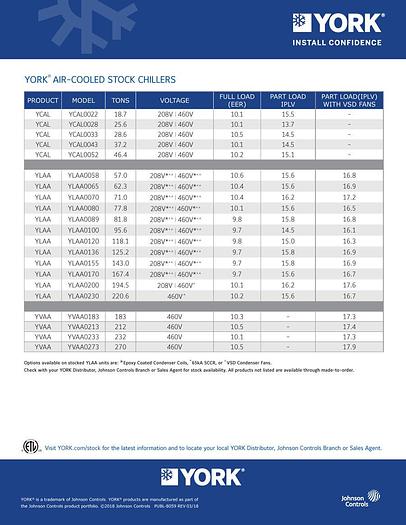

  • see FULL SPECS PDF at bottom of listing
  • KIG (Keith Industrial Group Inc.) specializes in NEW Air Cooled Chillers for industries such as breweries, wineries, manufacturing, plating, plastics, and comfort cooling. We provide hundreds of units per year from 20 ton up to 350 ton.


  • This unit is in build process and next available is: IN STOCK AS OF 8-13-24


  • Please check with us to confirm availability dates as they can change daily based on incoming sales orders. Availability dates are when units are due into our San Antonio, TX, stock yard location.
  • Factory Start up required for warranty. The start up charge can range from $ 3,700 up to $ 5,900 depending on site zip code.
  • YVAA0233XXX46R nominal tonnage is 228 tons
  • VSD Screw Semi Hermetic Variable Speed Screw Chiller 230 ton
  • Newest R513a Refrigerant
  • Voltage Code - (460/3/60) ampacity 425, max fuse 600
  • 2 Variable Speed Drive Semi Hermetic Screw Compressors
  • BACnet/Modbus/N2 (Native)
  • cUL/cETL Listing
  • shell / tube heat exchanger , 2-Pass Evaporator
  • Back Fluid Inlet (opposite control panel end)
  • All Aluminum Microchannel Coils
  • 89" wide x 292" long x 95" tall
  • shipping weight 14,528 lbs
  • design flow rate 546gpm at 44f water/95f ambient
  • 6" connections - grooved victaulic


Specifications

ManufacturerYork
ModelYVAA
ConditionNew
MpnYVAA0233XXX46R
